Model: MS-225
6-KW Solar
Generator Rental
AC Output: 6-KW rated / 12-KW surge
Solar Array: 6x 262-watt LG monocrystalline modules
Battery Capacity @ **hr Rate: **** AH @ **Vdc (**kWh)
A 8kW solar generator can provide ample power for small to midsize applications. Call us or fill out our contact form to get a better idea on how many things you can power for how long.

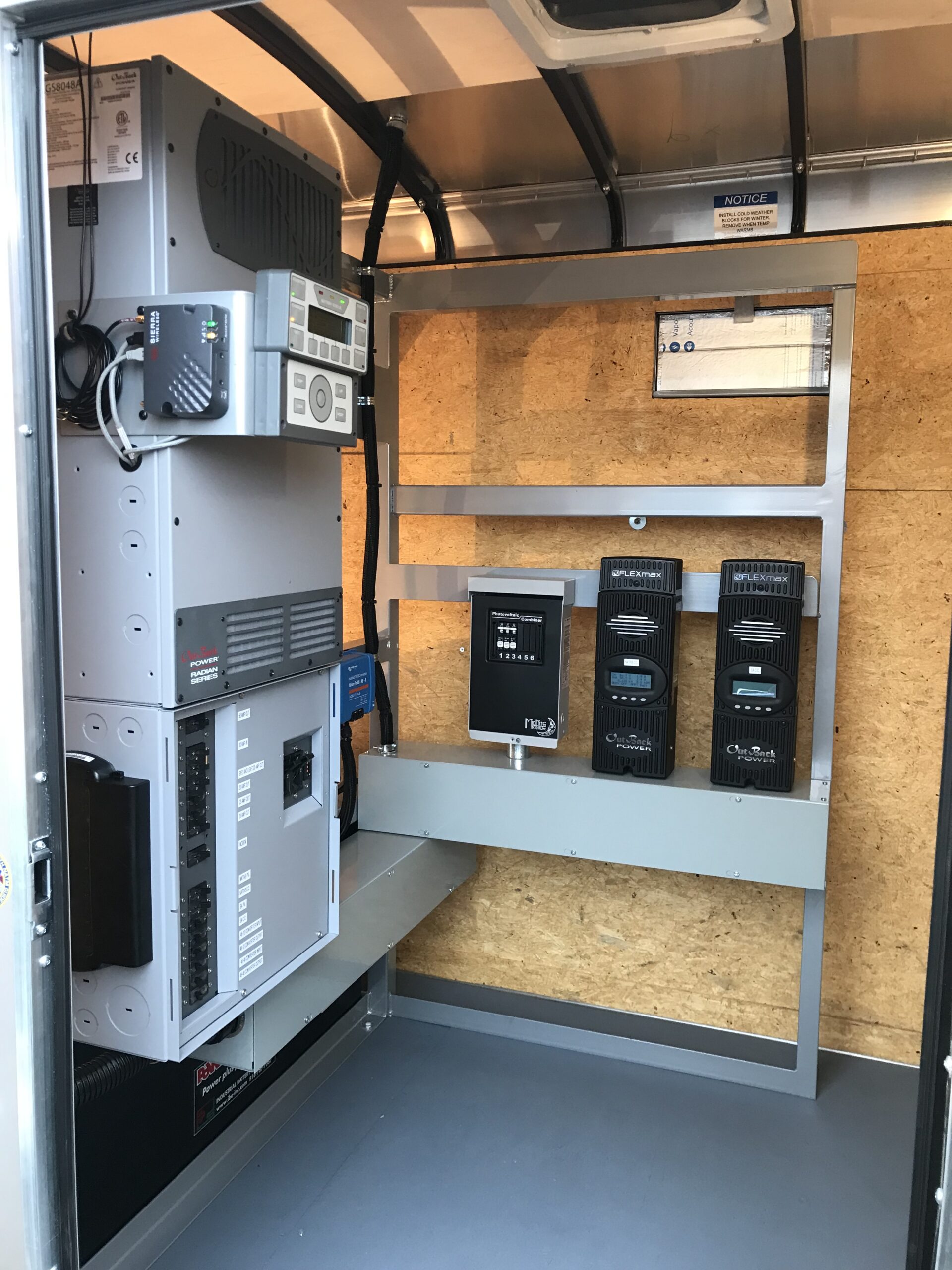

| Inverter | |
|---|---|
| Rated Power | 8 kW |
| Instantaneous Power | 16.97 kW |
| Output Voltage | 120/240VAC 60Hz 1-ph |
| Rated Amps (Instantaneous Amps) | 33.3A (70.7A) |

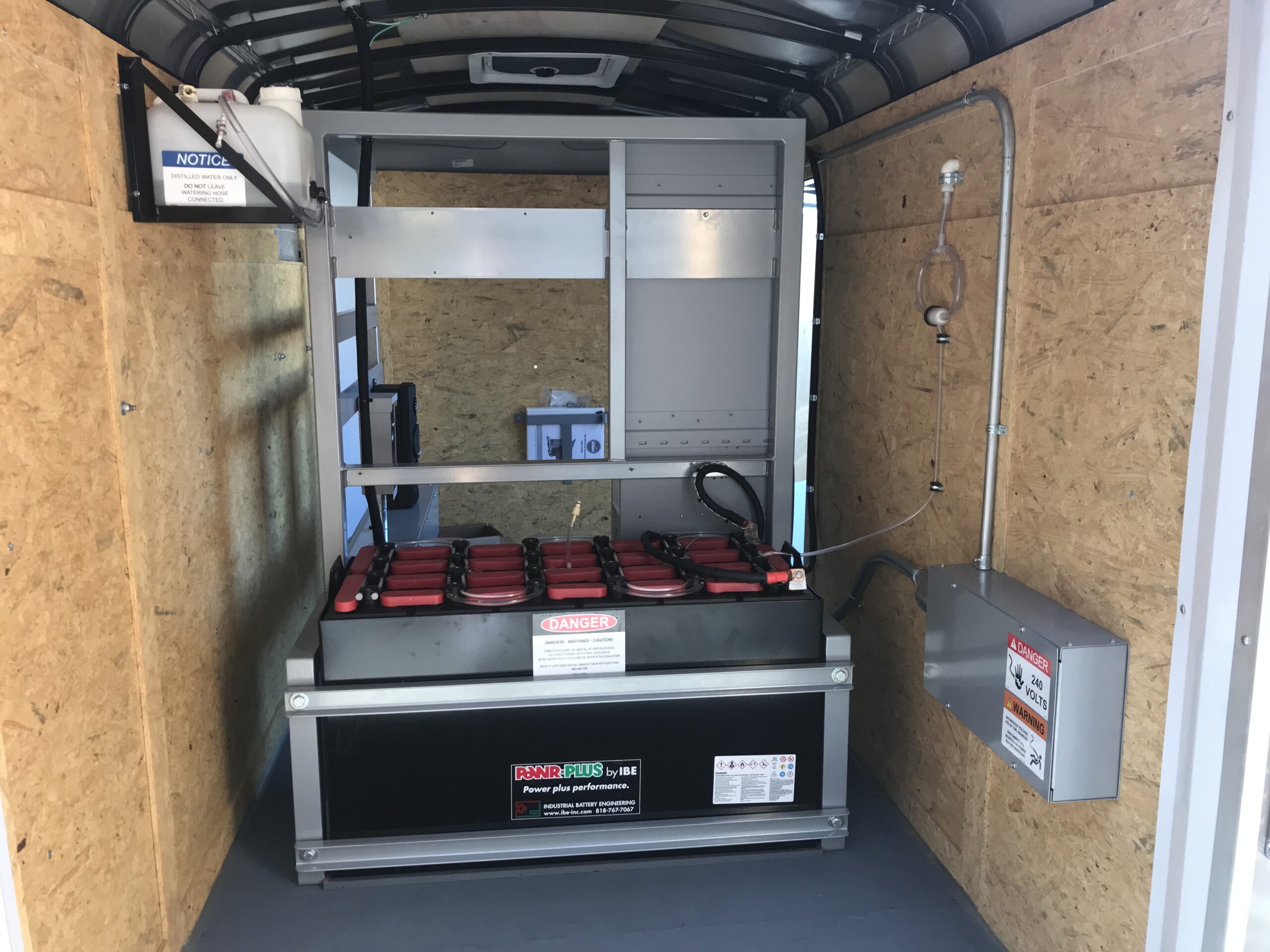

| Battery | |
| Energy Capacity @ 20hr. Rate | 50 kWh |
| Amp-Hour Capacity @ 20hr. Rate | 1,046AH @ 48VDC |
| Usable Energy Capacity (80% DOD) | 40 kWh |

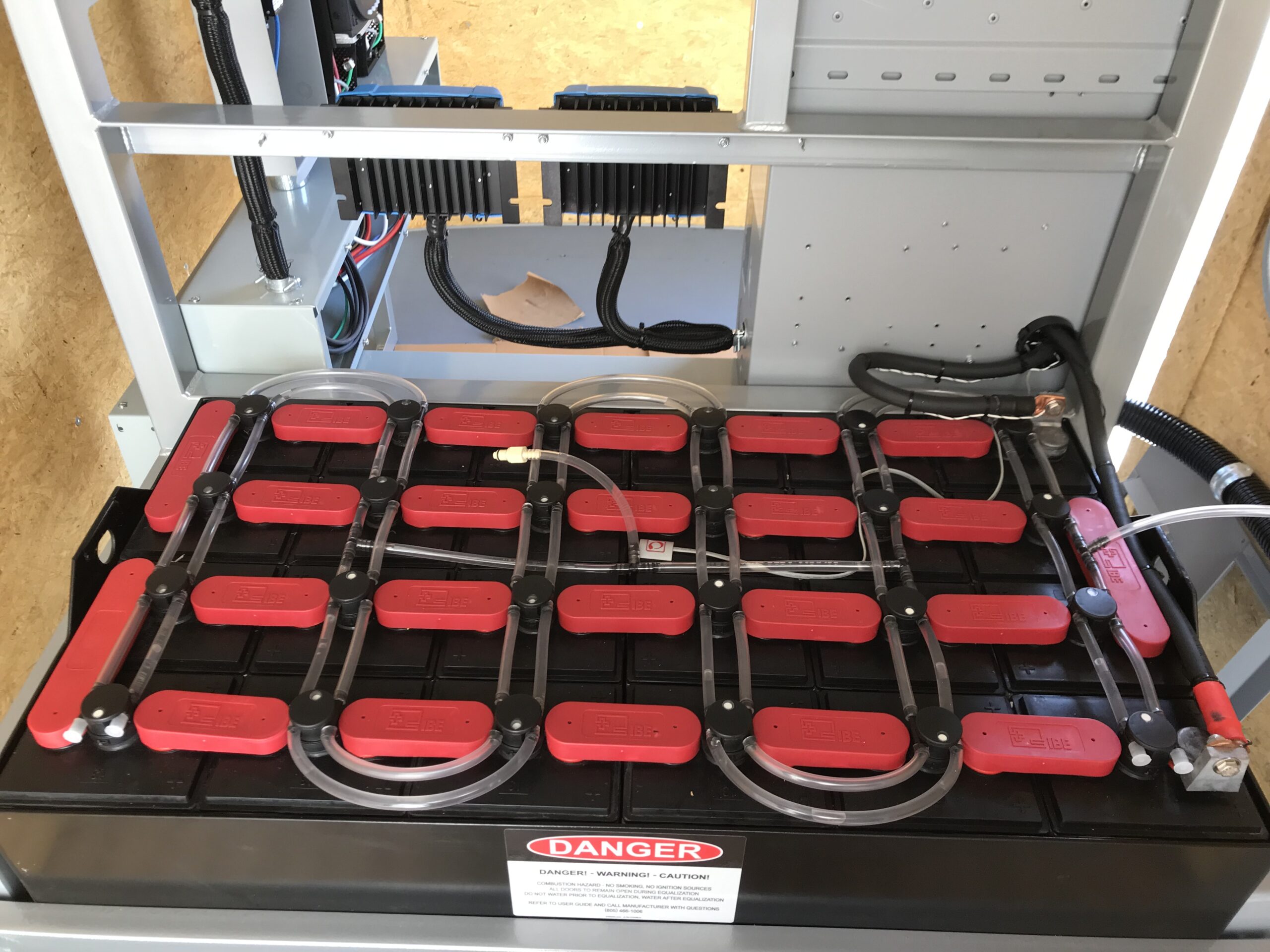

| Type and Chemistry | Industrial Steel-Case FLA |
| Solar | |
| Max Daily Energy Harvest | 20 kWh/day |
| Average Sunny Day Harvest | 16 kWh/day |
| Qty and Wattage of Solar Panels | 8 x 350 watt |
| Manufacturer and Type | LG Neon mono-crystal |
| Solar | |

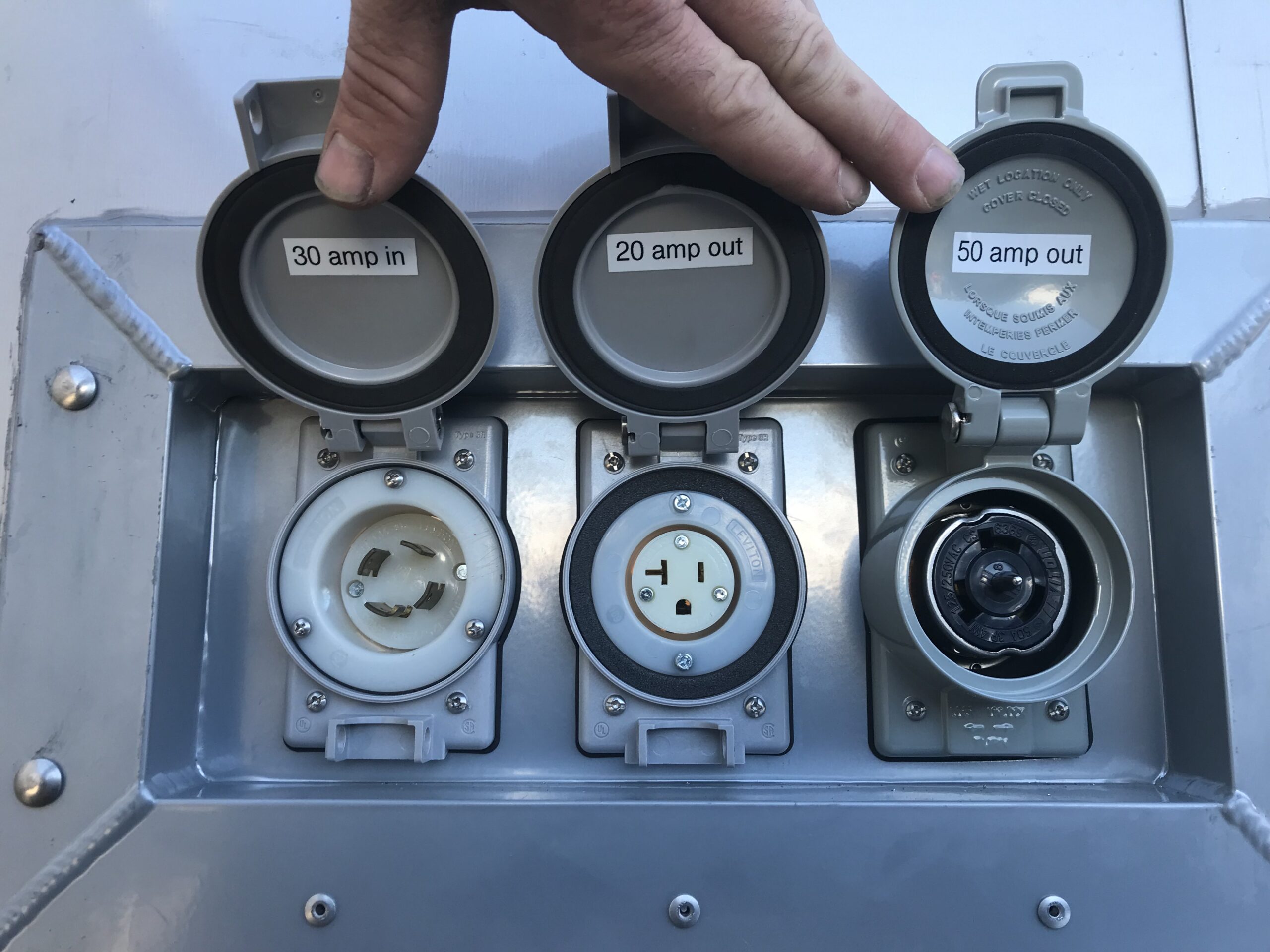

| 120V outlets | 2 x 20Amp |
| 120/240V outlets | 1 x 30A & 2 x 50A |
| 120/240V inlets (shore power) | 1 x 50A |
| Main Lug Bussing | 1 x Main In & 1 x Main Out |

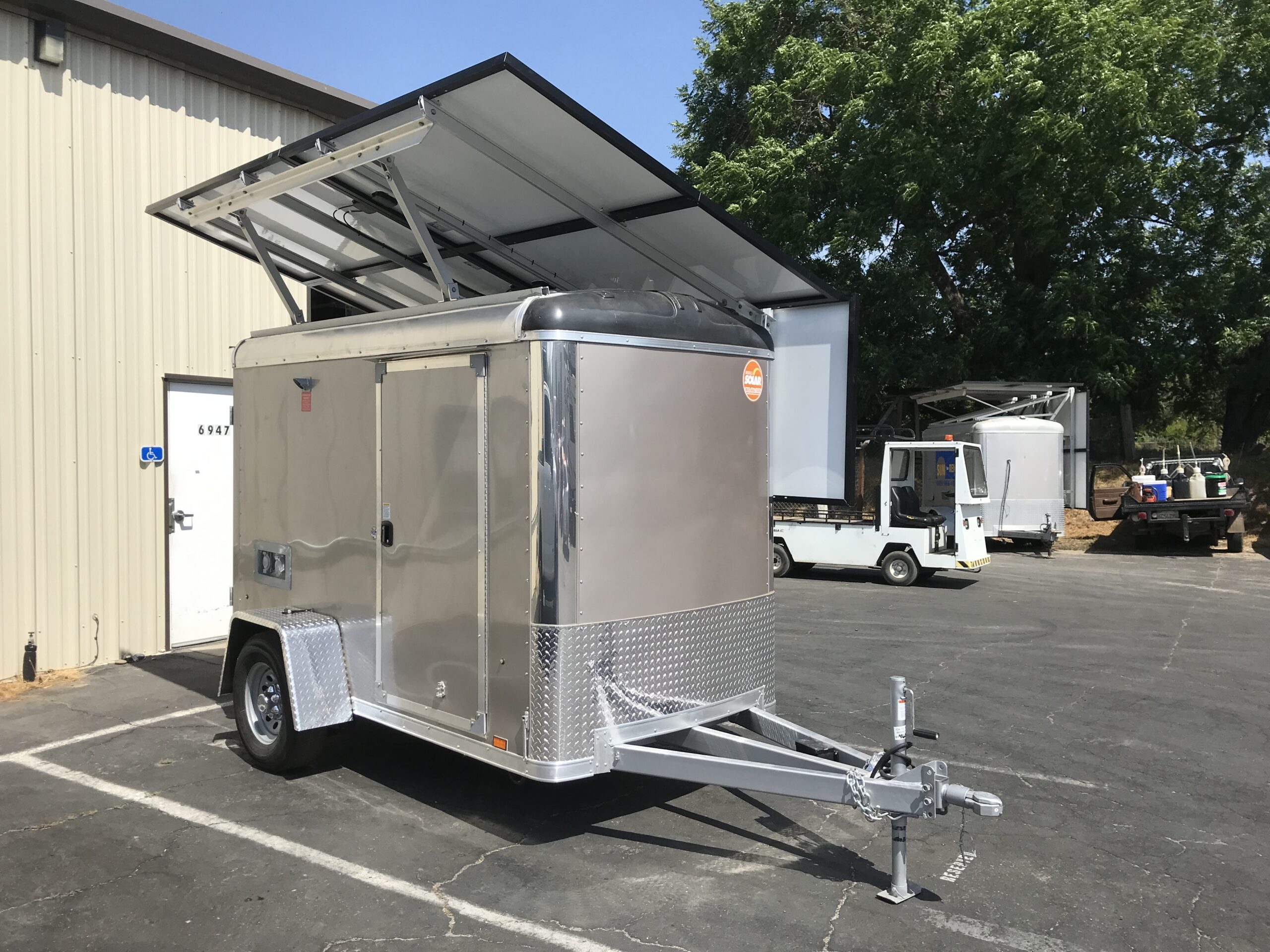

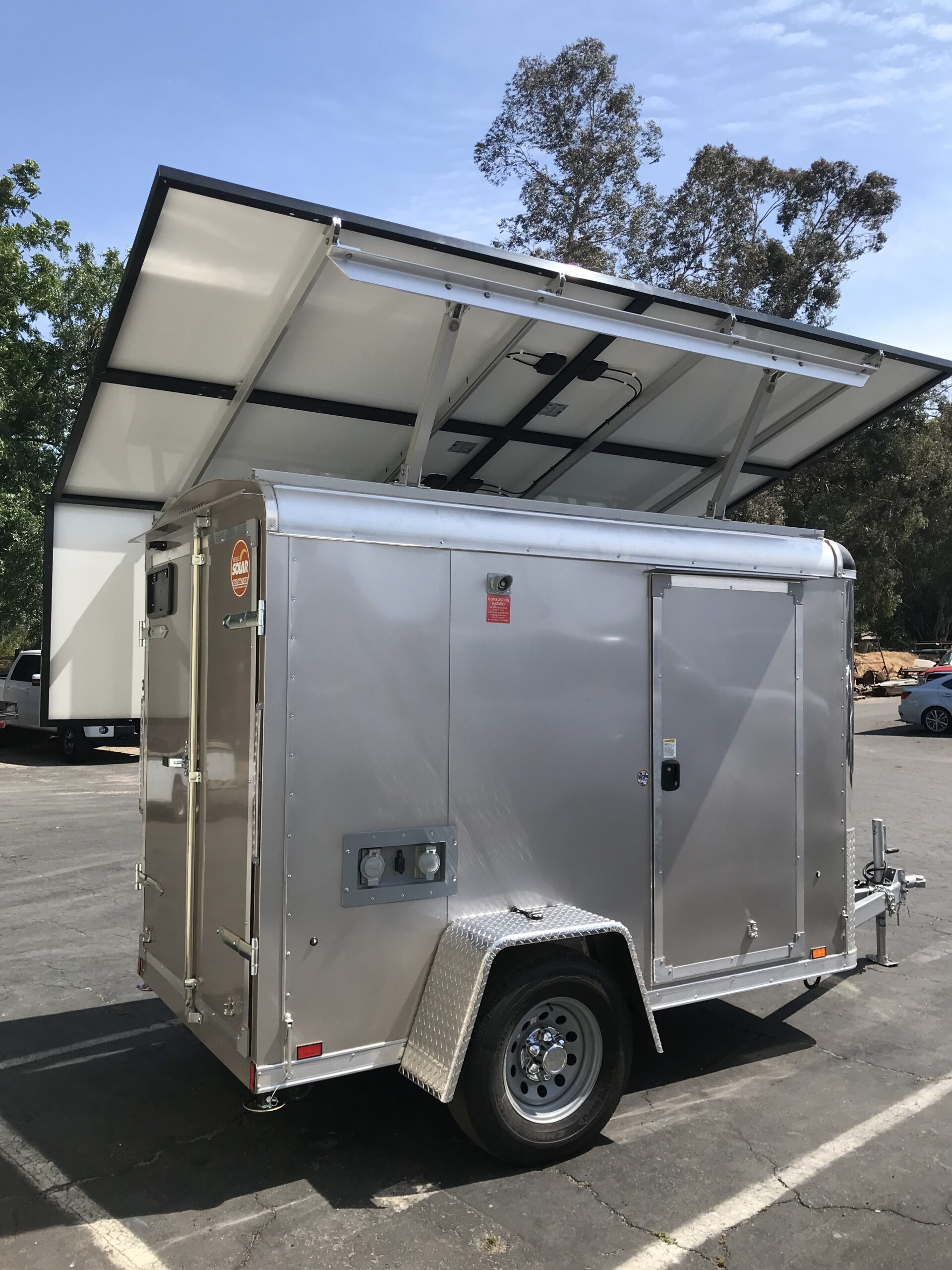

| Trailer Platform | |
| Inner Dimensions (W x L) | 5' x 9' |
| Dimensions Towing (W x L x H) | 7' x 14'-3" x 9'-7'' |
| Dimensions Fully Deployed | 12' x 14'-3'' x 13'-8'' |
| Approximate Curb Weight | 7,500 lbs |
| Total GVWR | 10,000 lbs |
