The SRX-12 is MOSO’s heavy-duty workhorse — the SRX-Series model built for operators running high-demand, multi-shift, or mission-critical operations where power availability is non-negotiable.

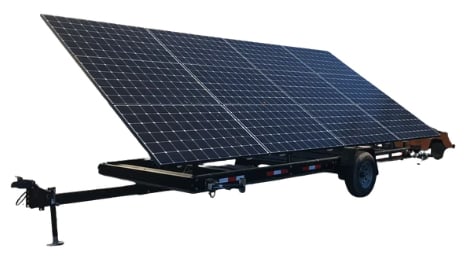

Twelve 375-watt LG Neon mono-crystalline panels and a 40.96 kWh LiFePO4 battery bank deliver up to 30 kWh of solar harvest on a peak day and average 24 kWh under standard sunny conditions. That’s enough to sustain a full crew, power heavy equipment, and maintain reserve capacity through low-sun days and overnight operation — without touching backup fuel.

The SRX-12 runs on the Outback Power Radian inverter, delivering 8 kW continuous and 16.97 kW instantaneous at 120/240VAC. The outlet configuration — 2 × 20A, 1 × 30A, and 2 × 50A receptacles — supports multiple simultaneous high-draw loads across a wide range of equipment and applications.

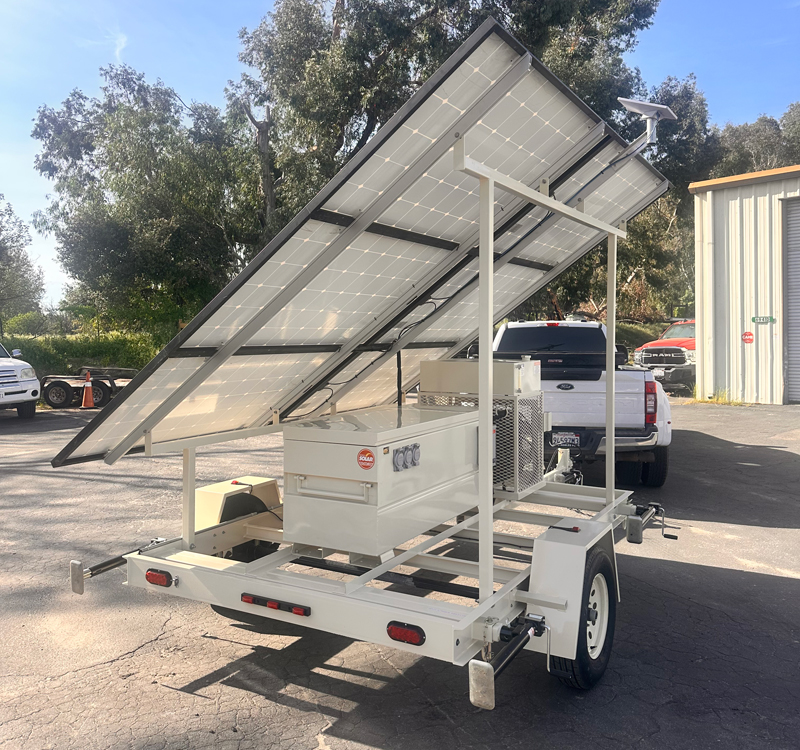

Built on MOSO’s proven open-chassis trailer platform, the SRX-12 is engineered for extended field life with minimal maintenance. The bolt-together frame, heavy-duty fenders, 36″ outriggers with swing-down jacks, and multiple ground-anchor tie-down points give it the structural integrity to hold its ground in high-wind and challenging terrain conditions.

The self-heated LiFePO4 battery bank operates from -40°C to +60°C and is rated for 6,000 cycles at 80% depth of discharge — certified to UN 38.3 and manufactured by New Use Energy. Every SRX-12 comes standard with Starlink Mini for full remote monitoring, control, and GPS tracking, so your team can manage the unit from anywhere without a site visit.

When conditions demand it, the optional Honda EU7000iS backup generator — in a lockable, theft-resistant cage with a 30-gallon auxiliary fuel tank and auto-start — provides 7 kW of seamless backup power on demand.

Like every unit in the SRX-Series, the SRX-12 can be fully de-trailerized in under 15 minutes — wheels, fenders, axle, and tongue removed, jacks deployed, chassis stable on the ground. No crane, no crew, no downtime. Made in the USA. Backed by Mobile Solar’s 5-year platform warranty.
