Model: SRX-6

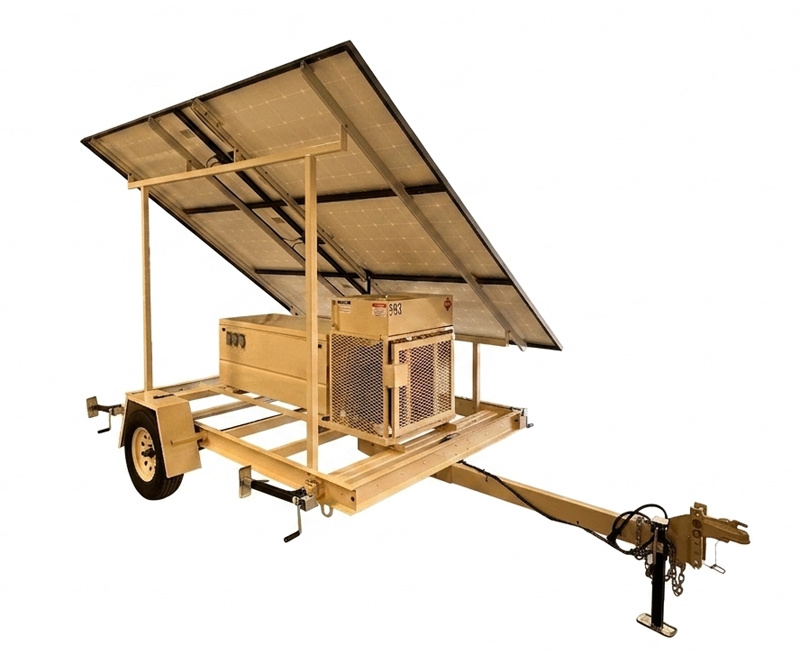

Rugged Trailer-Based Solar Generator
Built tough. Deployed fast. The SRX-6 delivers clean, silent solar power wherever you need it — no fuel, no fumes, no downtime. Light enough to tow with a standard truck or SUV. Capable enough to power serious work.
Rentals available anywhere in the lower 48 states.
3.6 kW
Rated Power
6 kW
Instantaneous
20.48 kWh
Battery Capacity
2,520 lbs
Curb Weight
About the SRX-6
The Entry Point
Into SRX
The SRX-6 is the entry point into MOSO’s all-new SRX-Series — a rugged, open-chassis trailer platform engineered from the ground up for maximum mobility, rapid deployment, and long-term durability in demanding field environments.

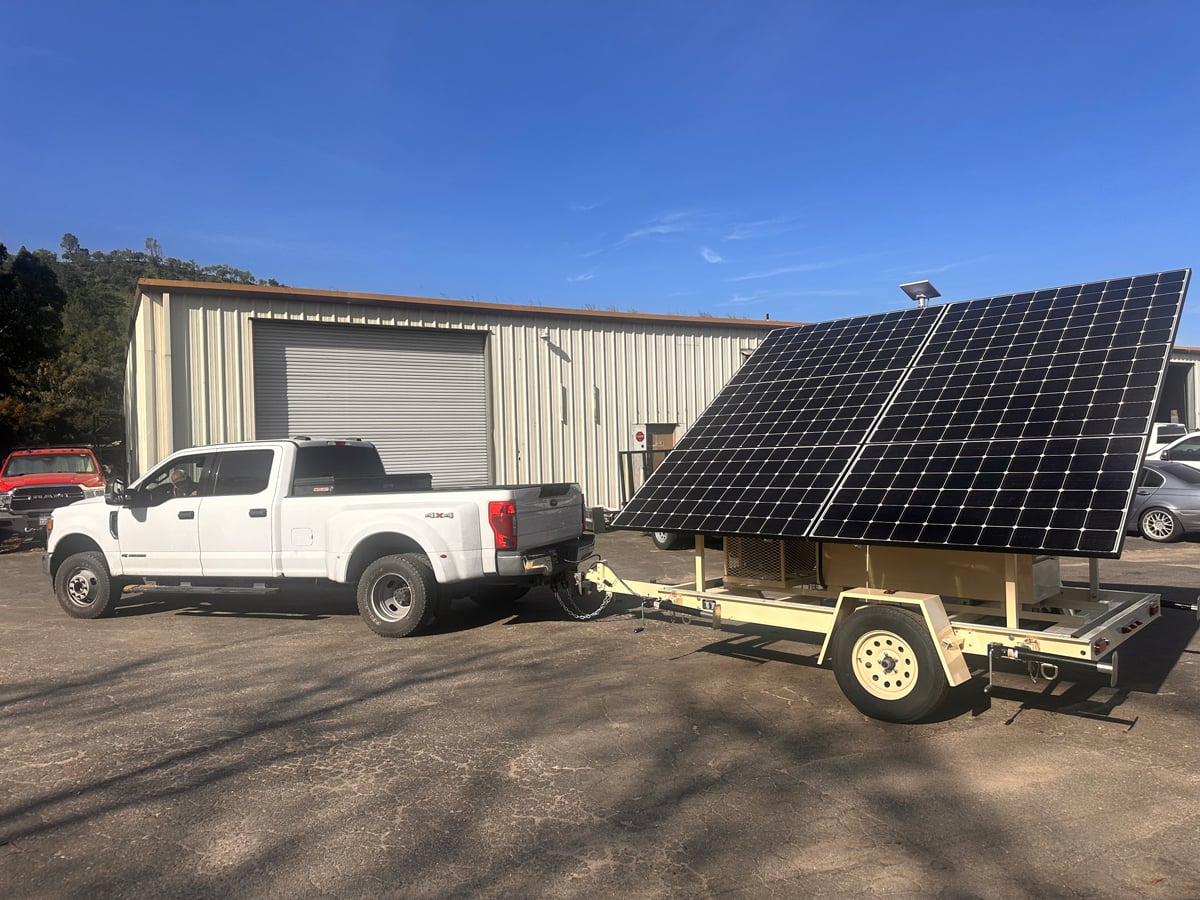

At 2,520 lbs and rated for a 3,500 lb GVWR, the SRX-6 is light enough to tow with a standard half-ton truck or SUV, yet capable of delivering 3.6 kW of continuous rated power and 6 kW instantaneous — enough to run compressors, lighting systems, communications equipment, and sensitive electronics simultaneously.

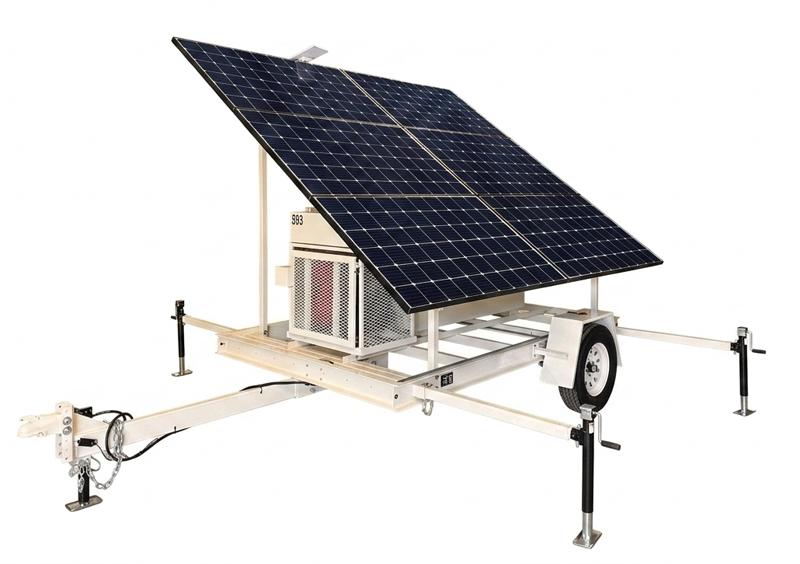

The SRX-6 is designed with an open-chassis frame, heavy-duty fenders, and a bolt-together structure that provides a secure and sturdy platform for the power system. Four outriggers with swing-down jacks and multiple ground-anchor tie-down points provide maximum stability in high-wind and uneven terrain conditions.
The fixed-pitch solar array — 6 × 375-watt LG Neon mono-crystalline panels — harvests up to 15 kWh on a peak day and averages 12 kWh on a standard sunny day. An optional auxiliary solar input adds up to 5 kW of additional capacity when extended run time is needed.
Power is stored in a 20.48 kWh self-heated LiFePO4 battery bank rated for 6,000 cycles at 80% depth of discharge — engineered to operate from -40°C to +60°C. That means the SRX-6 works in climates where other manufacturers’ solar equipment fails.
Every SRX-6 comes standard with Starlink Mini for cloud-connected remote monitoring and control, plus GPS tracking. Manage and monitor your unit from anywhere — no site visit required.
The SRX-6 can be fully de-trailerized in under 15 minutes. Remove the wheels, fenders, axle, and tongue, deploy the four swing-down jacks, and the chassis sits level and stable directly on the ground — with or without the outriggers. No crane, no crew, no downtime. Made in the USA. Backed by Mobile Solar’s 5-year platform warranty.
What’s Included
Standard Features
Cloud-Connected Remote Monitoring + GPS
(Starlink Mini — included standard)
Fixed-Pitch, No-Moving-Parts Solar Array
Self-Heated LiFePO4 Battery — operates from -40°C to +60°C
Adjustable-Height Ball Coupler or Pintle Hitch
6,000-Cycle Battery Life at 80% Depth of Discharge
Telescopic / Removable Tongue
Open-Chassis Frame — low wind profile, minimal cosmetic maintenance
De-Trailerizable in Under 15 Minutes
36″ Outriggers + Ground-Anchor Tie-Down Points
Made in the USA | 5-Year Platform Warranty
Drop-Down / Slide-Out Generator Service Platform
Available Options
Auxiliary Solar Input (up to +5 kW additional)
12V, 24V & 48V DC Outputs for specialized loads
Hybrid Backup: Honda EU3000iS in Lockable Theft-Resistant Cage
Technical Data
Full Specifications
Power Output
Rated Power
3.6 kW
Instantaneous Power
6 kW
Output Voltage
120VAC 60Hz, Single Phase
Rated Amps
29.2A
Instantaneous Amps
50A
Inverter
Outback Power FXR
Inverter Warranty
5 Years
Solar Harvest
Peak Day Harvest
15 kWh/day
Average Sunny Day
12 kWh/day
Panel Quantity & Wattage
6 × 375W
Total Array Watts
2,250W
Panel Type
LG Neon Mono-Crystalline
Aux Solar Input
Optional (+5 kW)
Panel Warranty
25-Year Limited
Energy Storage
Battery Chemistry
LiFePO4
Energy Capacity
20.48 kWh
Amp-Hour Capacity
400AH @ 51.2VDC
Usable Capacity
100%
Cycle Life (80% DoD)
6,000 cycles
Operating Range
-40°C to +60°C
Certified To
UN 38.3, UL 1642, CE
Battery Warranty
5 Years
Trailer Platform
Nominal Dimensions
6′ × 10′
Towing Dimensions
8’6″ W × 14’5″ L × 9′ H
Curb Weight
2,520 lbs
GVWR
3,500 lbs
Outlets (Standard)
1 × 20A + 1 × 30A (120V)
Shore Power Inlet
30A 120V — L5-30
Manufacturer
Mobile Solar
Platform Warranty
5 Years
* Specifications subject to change. Contact us to confirm current configuration availability.
